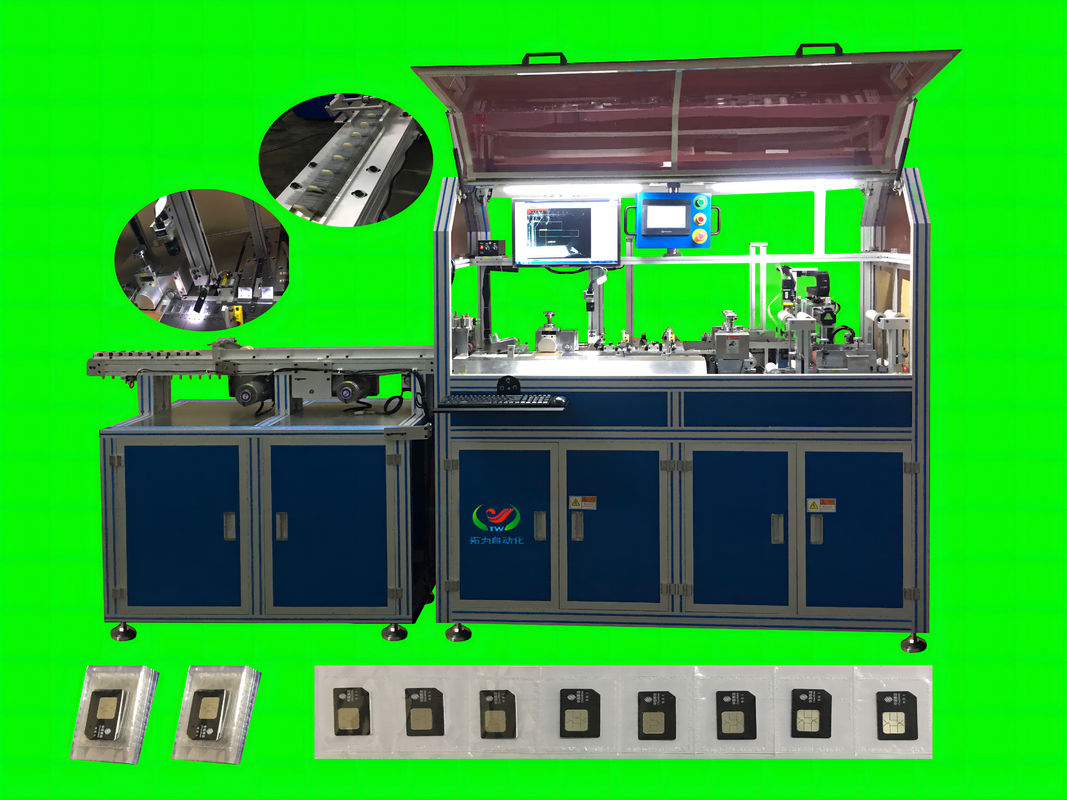

Automatic Controlled SIM Card Packaging Machine For 2FF Mini SIM Cards

       Mini SIM Card Packing Machine  YUP-MC-8000

1. Introduction of Mini SIM Card Packing Machine YUP-MC-8000

The machine is designed for packaging 2FF mini SIM Cards. It can also pack other mini SIM cards including the punched 2-chip card, 4-chip card, 6-chip card and 9-chip card.

2. Application Introduction of Mini SIM Card Packing Machine YUP-MC-8000

 This machine is controlled automatically by the PLC program, and the Chinese and English touch screen is working with a friendly man-machine interface. It uses the continuous ultrasonic welding process with such features as fast speed, low noise,

clear welding pattern and low air consumption.

The machine -Mini SIM Card Packing Machine YUP-MC-8000 is also named as Mini SIM Card Packaging Machine, Mini SIM Card Packer, Mini SIM Card Wrapping Machine or Mini SIM Card Wrapper YUP-MC-8000.

3. Functional Features of Mini SIM Card Packing Machine YUP-MC-8000

• It integrates the functions of film delivery, card delivery, card tearing, and card collection.
• The packaging film is conveyed by a special rubber wheel and a film suction belt, which is stable and smooth.
• It uses automatic detection of repeated card, no card or no film, and it will automatic shutdown when any error occurs.
• It is suitable for various packaging films with the thickness more than 0.025mm .

• It uses continuous ultrasonic welding process, and the welded pattern is clear and beautiful.

• It has the chained card packaging function and can set the number of each chained card section.
• The edge of the packaging bag uses a personalized design structure.
• It has professional card collection structure, which can automatically fold the packaged small cards and store them in a single block collection belt.
• The CCD visual inspection system is optional which can detect the serial number or bar-code of the SIM mini cards.

4. Main Technical Parameters
