cell phone charge card Packing Machine With Ultrasonic Welding Technology

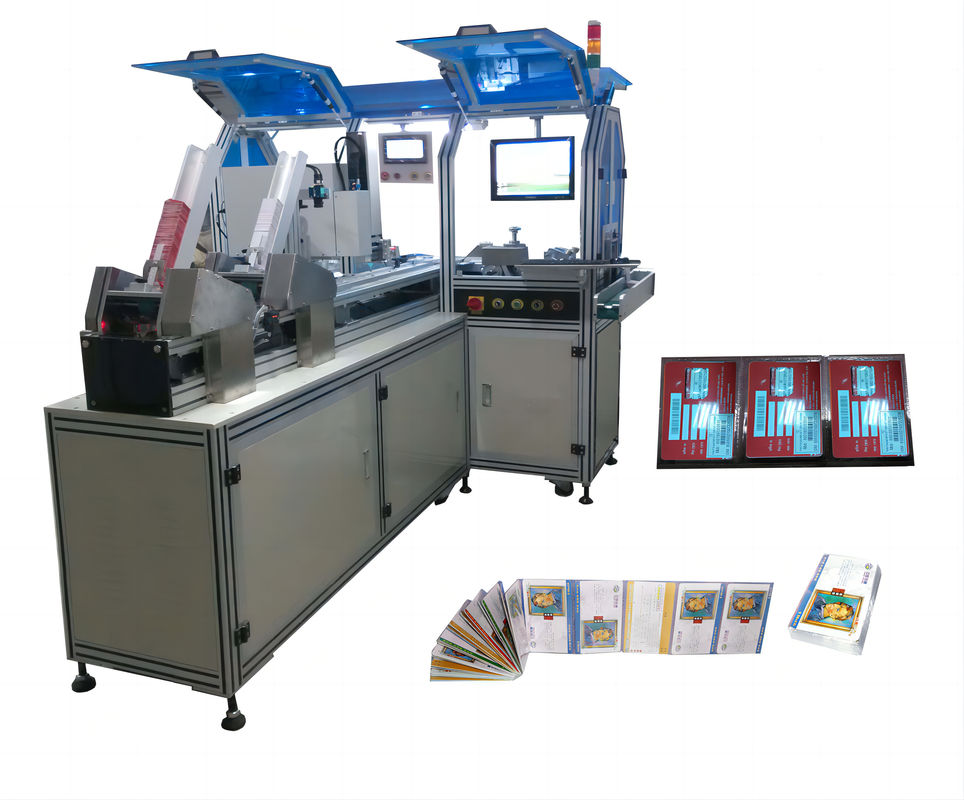

Automatic Ultrasonic Card Packing Machine YUP-600

Automatic Ultrasonic Card Packing Machine Automatic Card Packaging Machine Card Wrapping Machine Card Wrapper Card Packer YUP-600

1. Introduction of Automatic Ultrasonic Card Packing Machine YUP-600

Ultrasonic Card Packing Machine YUP-600 can realize perfect single-card or multi-card packing by applying continuous ultrasonic welding technology. PLC controlled with friendly man-machine interface, it features fast speed, low noise, perfect welded pattern and reliable performance. It is applicable to pack cell phone charge card, standard and smaller SIM card in bulk.

2. Description of Automatic Ultrasonic Card Packing Machine YUP-600

1. Packing film is conveyed by special rubber wheel and air absorbing belt to ensure flat and stable film.

2. It has the function of automatic checking for card overlapping and card absence. If the above occurs, it will stop automatically with error notice.

3. The second feeder can be installed to pack double cards or insert the mini booklet in one bag.

4. It applies the welding technology of continuous ultrasonic welding, which can ensure clear and beautiful sealing patterns or lines.

5. Single-card packing or Multiple-card packing is available, and the number of cards to be collected can be set.

6. Visual inspection system (CCD) is optional, which can check the serial number or bar codes of the cards.

1. ) Speed: around Max 6000 pcs/hr
2. ) Power supply: AC 380V/50 HZ
3. ) Weight: Approximate 800Kg
4. ) Mechanical adjustment: 0.01mm
5. ) Power:15KW
6. )Control Method:PLC programming+ Step System
7. ) Packaging Material:BOPP film or similar 0.025mm~0.035 mm thick
8. ) Weight: Approximate 800Kg
9. ) Dimension: L1300×W900×H1700mm
