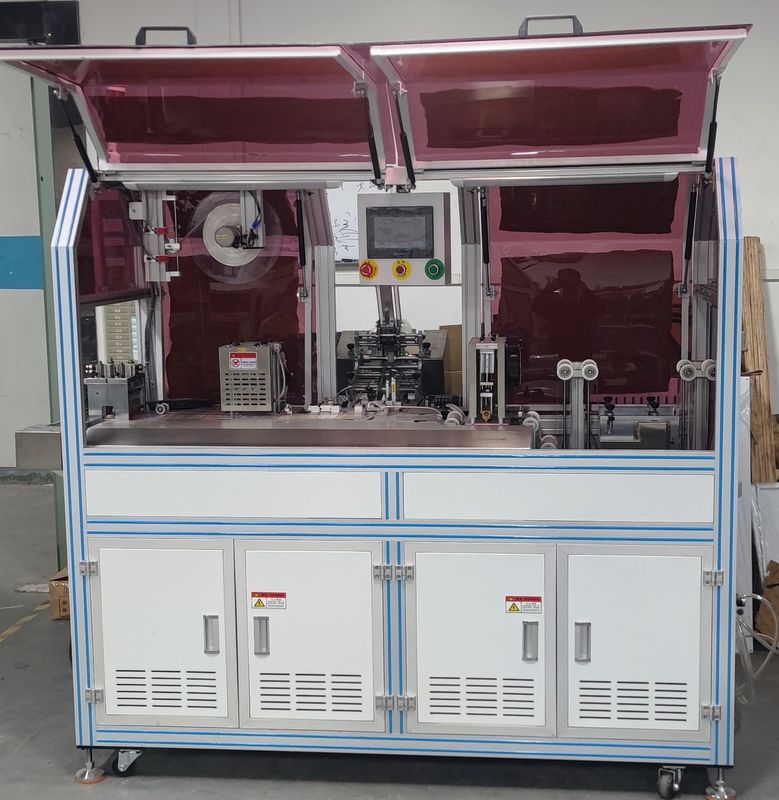

Auto Hot Sealing Card Packaging Machine High Pressure Wrapper Technology YHP-600

Automatic Hot-sealing Card Packing Machine Hot-welding High-pressure Wrapper Technology YHP-600


1. General Introduction of Automatic Hot-sealing Card Packing Machine Hot-welding High-pressure Wrapper Technology YHP-600

Automatic Hot-sealing Card Packing Machine YHP-600 is designed for massively packing normally used cards such as telephone charging cards in an economic and fast way. It applies hot-welding and high-pressure packing technology. Card Sending and film conveying is realized by stepping motor. It is automatically controlled by PLC with friendly human-machine interface. The welding line is straight line, and the zigzag lines cannot be realized in this machine.



This automated packaging machine is a heat sealing equipment used for closing card packaging bags and pouches, suitable for a wide range of cards, such as packaging prepaid cards, game cards, IC cards, SIM cards, etc.

2. Features of Automatic Hot-sealing Card Packing Machine Hot-welding High-pressure Wrapper Technology YHP-600

Key Features:
  1. automatic monitoring and alarming on card overlapping or card absence is available.

2. It can wrap all the paper or plastic cards with the thickness of over 0.25mm.

3. The minimum thickness of the available packing film is 0.025mm.

4. Single-Card Packing or multiple-card packing function are available, and packed chain card collection quantity can be set.

5. Welding With double mould is available, and replacement of welding mould is easy.

6. The size of the packing bag is adjustable.

7. Visual inspection system is optional, which can be used to check the card serial number or barcode.

3. Technical Parameter of Automatic Hot-sealing Card Packing Machine Hot-welding High-pressure Wrapper Technology YHP-600

Automatic Hot-sealing Card Packing Machine YHP-600 is also known as Card Packaging Machine, Card Wrapping Machine, Card Wrapper or Card Packer YHP-600.
★ Main Technical Parameters



4. Other details of Automatic Hot-sealing Card Packing Machine Hot-welding High-pressure Wrapper Technology YHP-600

1.Combining functions of film unwinding, card feeding, card packaging, and card collection;
2.Suitable for paper cards and PVC cards with thickness over 0.15mm;
3.Utilizing BOPP film with thickness over 0.025mm;
4.Heat sealing process provides high operation speed and reliable closure;
5.Automatic inspection of card shortage and double pieces in each package, the machine will immediately stop and actuate alarm when any fault occurs;
6.Individual packaging or continuous strip packaging of cards are available, the quantity of cards in collection section can be pre-set;
7.Dual sealing molds are adopted for higher efficiency, which are easy to changeover, packaging bag size is adjustable;
8.Machine vision inspection system is optional, it can inspect and read serial number and barcode of cards;





Our service :
Pre-sale
(1) Professional suggestions (raw material matching, machine selection, the condition of building factory, feasibility analysis for brick machine production line)
(2) Device model choice (recommend the best machine according to the raw material, capacity and the size of brick)
(3) Efficient on-line service
(4) Welcome to visit our factory and production line any time, if you need, we can make invitation letter for you.
(5) Introduce the company file, product categories and production process.
Sale:
(1) Update the production scheduling in time
(2) Quality supervision
(3) Product acceptance
(4) Shipping on time
After-sale:
(1) The engineer will guide to carry out the plant at the clients side if needed.
(2) Set up, fix, and operate
(3) offer training to the operator until they are satisfied at clients side.
(4) Skill support the whole using life.
(5) Recall clients regularly ,get feedback in time ,keep well communication with each other

Guarantee
(1)We can supply one year guarantee period for our card machines, if the client have any question ,they could contact our service department any time ,we will supply efficient service .
(2)Within one year ,if the client meet the unsolvable questions ,we can make site supporting.
