Automatic Single Card Or Multi Card Packing Machine Card Wrapper PLC Controlled

Automatic High-speed Ultrasonic Card Packing Machine Technical Specification

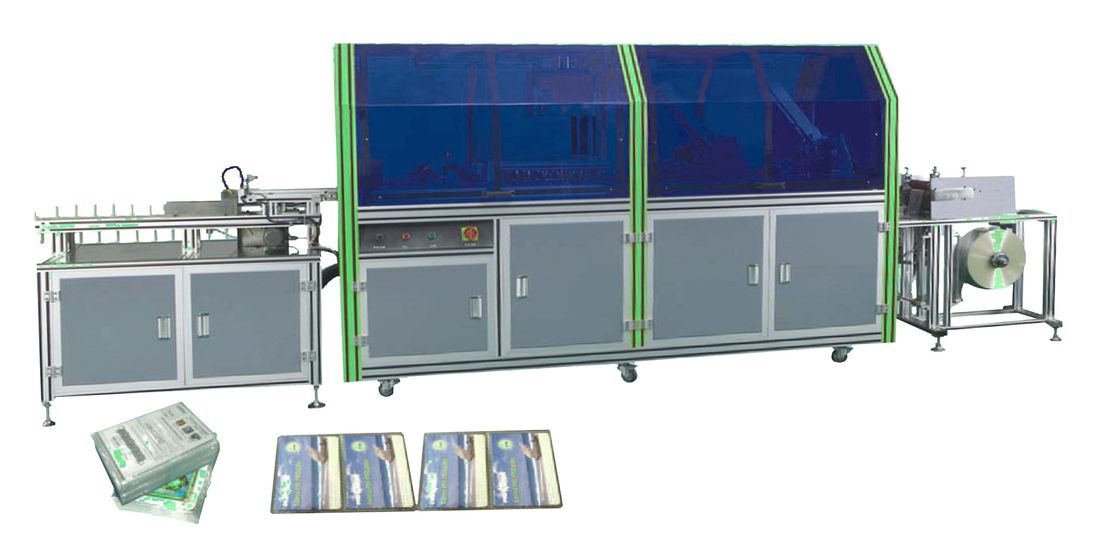

Automatic High-speed Ultrasonic Card Packing Machine Card Packaging Machine Card Wrapping Machine Card Wrapper Card Packer YUP-3000

1. Introduction of Automatic High-speed Ultrasonic Card Packing Machine Technical Specification

Automatic High-speed Ultrasonic Card Packing Machine YUP-3000 can realize perfect single-card or multi-card packing by applying continuous ultrasonic welding technology in a very high speed. PLC controlled with friendly man-machine interface, it features faster speed, low noise, perfect welded pattern and reliable performance. It is applicable to pack cell phone charge card, standard and smaller SIM card in bulk.

2. Key Features:

1. Packing film is conveyed by special rubber wheel and air absorbing belt to ensure flat and stable film.
2. It has the function of automatic checking for card overlapping and card absence. If the above occurs, it will stop automatically with error notice.

3. The second feeder can be installed to pack double cards or insert the mini booklet in one bag.
4. It applies the welding technology of continuous ultrasonic welding, which can ensure clear and beautiful sealing patterns or lines.

5. Single-card packing or Multiple-card packing is available, and the number of cards to be collected can be set.
6. Visual inspection system is optional, which can check the serial number or bar codes of the cards.

7. Chain card binding unit is optional, which can bind the packed chain cards.

3. Technical Parameters of Card Packer YUP-3000

1. ) Dimension: total around L4800×W980×H1860mm
2. ) Weight:Around 1000 KG
3. ) Power supply:AC 380V/50 HZ
4. ) Rated Power: 5 KW
5. ) Compressed Air:50 L/min 6 kgs /cm2(Dry)
6. ) Control Mode:PLC programming+ Step System
7. ) Processed Card size:ISO 0.25-0.8mm thick CR80 cards
