High Pressure Technology Card Packing Machine , Card Flow Wrap Machine adjustable

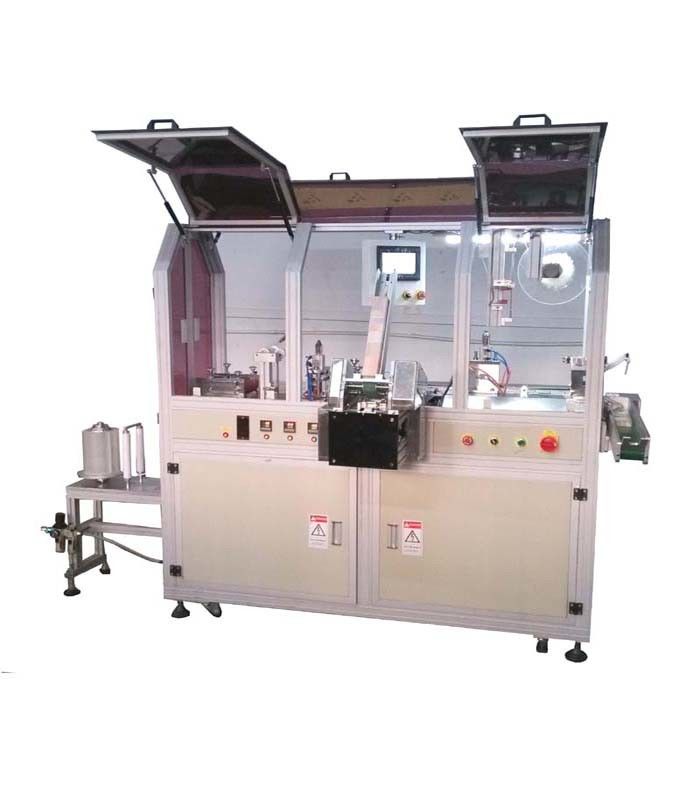

Automatic Hot-sealing Card Packing Machine YHP-600

1. Description of Automatic Hot-sealing Card Packing Machine YHP-600

Automatic Hot-sealing Card Packing Machine YHP-600 is also known as Card Packaging Machine, Card Wrapping Machine, Card Wrapper or Card Packer YHP-600.

It is designed for massively packing normally used cards such as telephone charging cards in an economic and fast way. It applies hot-welding and high-pressure packing technology. Card Sending and film conveying is realized by stepping motor. It is automatically controlled by PLC with friendly human-machine interface. The welding line is straight line, and the zigzag lines cannot be realized in this machine.

2.Other Features of Automatic Hot-sealing Card Packing Machine YHP-600

 1. Automatic monitoring and alarming on card overlapping or card absence is available.

2. It can wrap all the paper or plastic cards with the thickness of over 0.25mm.

3. The minimum thickness of the available packing film is 0.025mm.

4. Single-Card Packing or multiple-card packing function are available, and packed chain card collection quantity can be set.

5. Welding With double mould is available, and replacement of welding mould is easy.

6. The size of the packing bag is adjustable.

  7. Visual inspection system is optional, which can be used to check the card serial number or barcode.

3. More details of Automatic Hot-sealing Card Packing Machine YHP-600

1. ) Speed: Max 6000 pcs /hr
2. ) Weight:600kg
3. ) Dimension:L2650×W11000×H1800mm
4. ) Power supply: AC 380V/50 HZ
5. ) Power: 2.5KW
6. ) Compressed air: 6 kg/c㎡(Dry)
7. ) Air Consumption: 50 L/min.
8. ) Control mode: PLC programming+ Step System
9. ) Card size:0.25-0.8mm thick CR80 cards
10. ) Packaging Size:Folded film 105mm wide or single film roll 210mm wide. Film roll inner diameter 3 inches and external diameter  less than 450 mm

4. Free spare parts along with card packing machine YHP-6000
