Home > products > Card Hot Foil Stamping Machine > Plastic Card Embosser Machine With One Embossing Stations and One Tipping Station

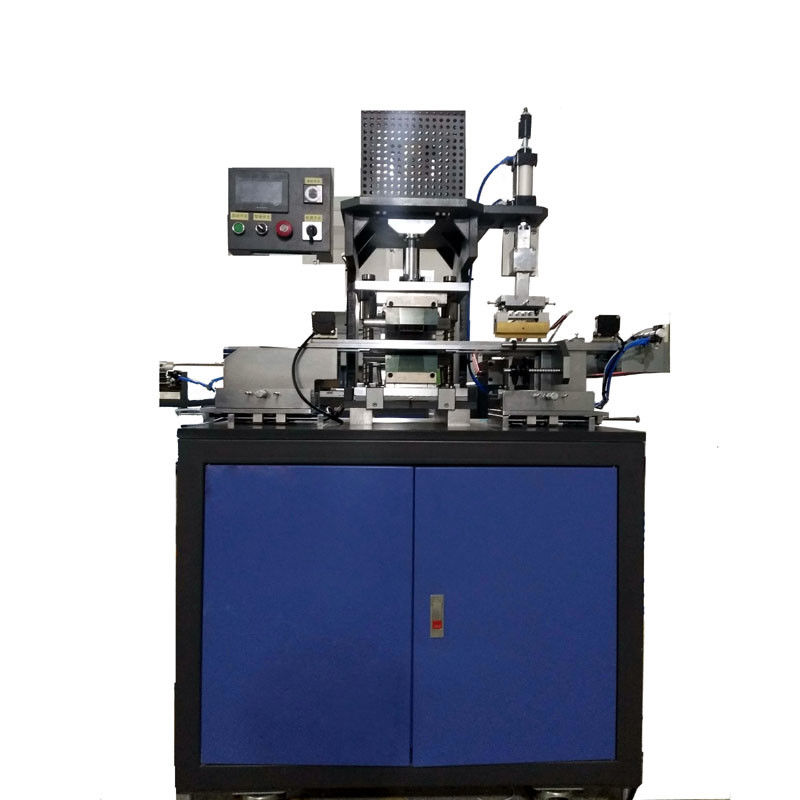

Plastic Card Embosser Machine With One Embossing Stations and One Tipping Station
Plastic Card Embosser Machine With One Embossing Stations and One Tipping Station
Plastic Card Embosser Machine With One Embossing Stations and One Tipping Station
Plastic Card Embosser Machine With One Embossing Stations and One Tipping Station
Plastic Card Embosser Machine With One Embossing Stations and One Tipping Station
Plastic Card Embosser Machine With One Embossing Stations and One Tipping Station
Plastic Card Embosser Machine With One Embossing Stations and One Tipping Station
Plastic Card Embosser Machine With One Embossing Stations and One Tipping Station

Plastic Card Embosser Machine With One Embossing Stations and One Tipping Station

Product Details

Place of Origin: China

Brand Name: YL

Model Number: YLE-1

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiable

Packaging Details: 1 plywood case

Delivery Time: 25days

Payment Terms: T/T, Western Union, D/P, D/A, Western Union

Supply Ability: 1 set per 25 days

Get Best Price

Product Details

Product Description
Product Details
Highlight:

touch screen pvc card embosser

,

2.5kW automatic pvc card embosser

,

PLC plastic card embossing machine

Speed:
Over 6000 Cards/hr
Applicable Material:
0.6-1.0 Mm Thick Plastic CR80 Cards
Pressure Of Hydraulic System:
≤50 KG/cm2
Pressure Of Compressed Air:
≤5 KG/ Cm2
Power Supply:
AC380V 50/60Hz
Power:
2.5kW
Weight:
350kg
Dimension:
L1400×W800×H1700 Mm
Speed:
Over 6000 Cards/hr
Applicable Material:
0.6-1.0 Mm Thick Plastic CR80 Cards
Pressure Of Hydraulic System:
≤50 KG/cm2
Pressure Of Compressed Air:
≤5 KG/ Cm2
Power Supply:
AC380V 50/60Hz
Power:
2.5kW
Weight:
350kg
Dimension:
L1400×W800×H1700 Mm
Product Description

                                                            Plastic Card Embosser YLE-1





1.  Machine Introduction  of Plastic Card Embosser YLE-1



The model YLE-1 has one embossing stations with one tipping station, which can emboss and tip the standard plastic card simultaneously in a speedy way. It is one of our best sellers among our products. This machine is designed only for embossing the sequential number (3 fixed words or symbol+ maximum 16 numbers).

It applies Mitsubishi PLC, touch screen and step-motion system in order to ensure the machine stability; the pneumatic parts applied in this machine are made by SMC to their working durability.

The embossing moulds are made of Japanese special steel material with the service life of tens of millions times. 2 sets of characters in big and small size are available.

The embossed word or symbol can be custom-made as per customer demand.



2. Technical Parameters of Plastic Card Embosser YLE-1



Speed

over 6000 cards/hr

Applicable material

0.6-1.0 mm thick plastic CR80 cards

Pressure of hydraulic system

≤50 KG/cm2

Pressure of compressed air

≤5 KG/ cm2

Power supply

AC380V 50/60Hz

Power

2.5kW

Weight

350kg

Dimension

L1400×W800×H1700 mm
