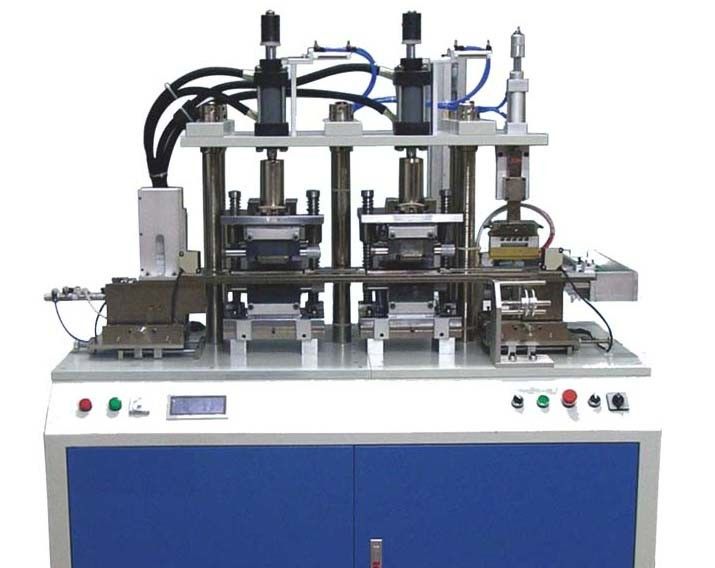

PLC Control Card Embossing and Tipping Machine With Two Embossing Stations

PLC Control Automatic Card Embossing and Tipping Machine YLE-2 With Two Embossing Stations

Plastic Card Embosser/Card Embossing and Bronzing Machine/Card Embossing and Tipping Machine/Card Numbering Machine YLE-2

1. Introduction of PLC Control Automatic Card Embossing and Tipping Machine YLE-2 With Two Embossing Stations

The model YLE-2 have two embossing stations with one tipping station, which can emboss and tip the standard plastic card simultaneously in a speedy way. It is one of our best sellers among our products. This machine is designed only for embossing the sequential number (3 fixed words or symbol+ maximum 16 numbers). It applies the reliable Japanese servo motor as embossing power to ensure better embossing effect with less maintenance operation.

2. Key Features of PLC Control Automatic Card Embossing and Tipping Machine YLE-2 With Two Embossing Stations

• It applies Mitsubishi PLC, touch screen and step-motion system in order to ensure the machine stability; the pneumatic parts applied in this machine are made by SMC to their working durability.
• The embossing moulds are made of Japanese special steel material with the service life of tens of millions times. 2 sets of characters in big and small size are available.
• The embossed word or symbol can be custom-made as per customer demand.
• Big/small font moulds are available, also combines the gilding and collecting together automatic embosser.
• Use the hydraulic station as dynamo, It is stable in performance, also the running speed and the emboss stroke both are adjustable.
• To adjust the font mould position in no more than 4.0mm distance from the card edge.
• The deviation from left to right for the font mould position is no more than +/-0.25mm.
• Programmed setting to remove the unwanted numbers of 4 and 7.
• Adjustable moving step for the gild feed belt to increase the rate of the stamping material.
• Adopted double cartridges to collect cards to reduce the rate of disorder.

3. Technical Parameter of PLC Control Automatic Card Embossing and Tipping Machine YLE-2 With Two Embossing Stations

1. Speed: over 6000 cards/hr.

2. Applicable material: 0.6-1.0 mm thick plastic CR80 cards.

3. Pressure of compressed air: 5 KG/cm²

4. Power supply: AC380V 50/60Hz

5. Power: 3.5kW

6. Weight: 600kg

7. Dimension: L1700×W820×H1600 mm

4. More details of PLC Control Automatic Card Embossing and Tipping Machine YLE-2 With Two Embossing Stations

It applies the reliable Japanese servo motor as embossing power to ensure better embossing effect with less maintenance operation.

The Plastic Card Embosser YLE-2 is also named or known as Card Embossing and Bronzing Machine, Card Embossing and Tipping Machine or Card Numbering Machine YLE-2.

It is high speed double mould automatic emboss and gild machine, it adopts PLC control system and touch-screen man-machine interface, easy to operate. It automatically to manage the embossing and gilding process. The big/small and English font moulds are available. The embossed fonts are fine looking and full, as good as embossed by the imported embosser,also gilding effect. The max production capacity is 6800cards/hour,it is the necessary equipment for the professional card making factories.
