Automatic PVC Smart Card Embossing and Bronzing Machine High Speed

High Speed Automatic Plastic Card Embossing and Bronzing Machine YLE-1 For PVC Smart Card

Plastic Card Embosser/Card Embossing and Bronzing Machine/Card Embossing and Tipping Machine/Card Numbering Machine YLE-1

1. Introduction of High Speed Automatic Plastic Card Embossing and Bronzing Machine YLE-1 For PVC Smart Card

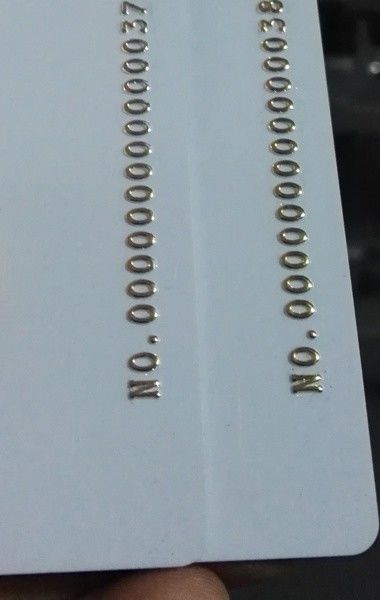

The model YLE-1 has one embossing stations with one tipping station, which can emboss and tip the standard plastic card simultaneously in a speedy way. It is one of our best sellers among our products. This machine is designed only for embossing the sequential number (3 fixed words or symbol+ maximum 16 numbers).

2. Key Features of High Speed Automatic Plastic Card Embossing and Bronzing Machine YLE-1 For PVC Smart Card

• It applies Mitsubishi PLC, touch screen and step-motion system in order to ensure the machine stability; the pneumatic parts applied in this machine are made by SMC to their working durability.
• The embossing moulds are made of Japanese special steel material with the service life of tens of millions times. 2 sets of characters in big and small size are available.
• The embossed word or symbol can be custom-made as per customer demand.
• Big/small font moulds are available, also combines the gilding and collecting together automatic embosser.
• Use the hydraulic station as dynamo, It is stable in performance, also the running speed and the emboss stroke both are adjustable.
• To adjust the font mould position in no more than 4.0mm distance from the card edge.
• The deviation from left to right for the font mould position is no more than +/-0.25mm.
• Programmed setting to remove the unwanted numbers of 4 and 7.
• Adjustable moving step for the gild feed belt to increase the rate of the stamping material.
• Adopted double cartridges to collect cards to reduce the rate of disorder.

3. Technical Parameter of High Speed Automatic Plastic Card Embossing and Bronzing Machine YLE-1 For PVC Smart Card

1. ) Speed: over 6000 cards/hr.
2. ) Applicable material: 0.6-1.0 mm thick plastic CR80 cards.
3. ) Pressure of compressed air: ≤5 KG/ cm²
4. ) Power supply: AC380V 50/60Hz
5. ) Power: 2.5kW
6. ) Weight: around 400kg
7. ) Dimension: L1200×W820×H1600 mm

4. More details of High Speed Automatic Plastic Card Embossing and Bronzing Machine YLE-1 For PVC Smart Card

It applies the reliable Japanese servo motor as embossing power to ensure better embossing effect with less maintenance operation.

The Plastic Card Embosser YLE-1 is also named or known as Card Embossing and Bronzing Machine, Card Embossing and Tipping Machine or Card Numbering Machine YLE-1.
