Automatic Magnetic Stripe Laying System , Magnetic Stripe Pasting Machine

Magnetic Stripe Applicator YMSL-1000

Automatic Magnetic Stripe Laying Machine Automatic Magnetic Stripe Pasting Machine Magnetic Stripe Paster Magnetic Stripe Applicator YMSL-1000

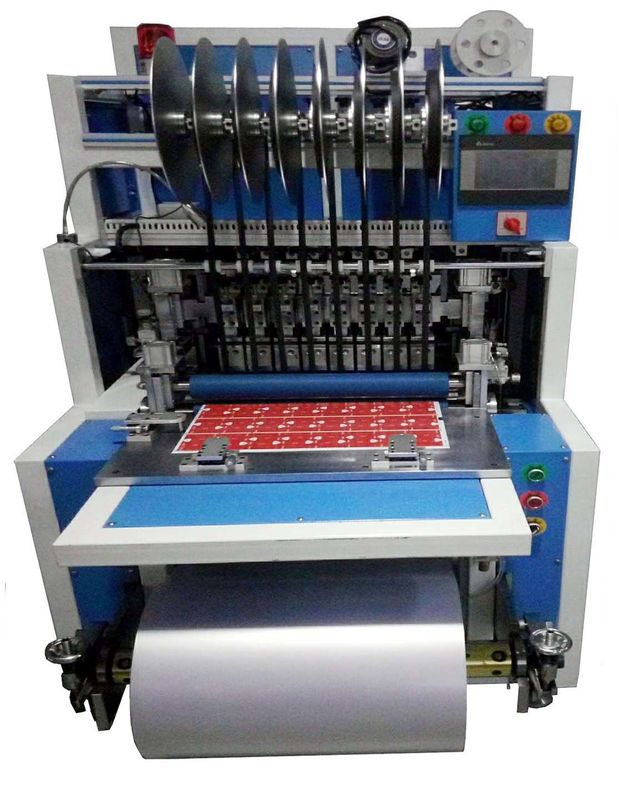

1.Introduction of Magnetic Stripe Applicator YMSL-1000

The machine is designed to lay the magnetic stripe onto the plastic sheets or film rolls (such as PVC and PET) by heating and pressurizing in a precise and firm way. It has three material feeding and collection modes: roll-to-sheet, roll-to-roll or sheet-to-sheet. The whole process can realize

automatic operation to ensure stable and reliable operation. It can lay both ordinary and transferable magnetic stripe.

2. Feature Parameters of Magnetic Stripe Applicator YMSL-1000

1.The system is automatically controlled by PLC program with friendly man-machine interface;

2. Sheet feeding, speed and film moving length are controlled by servo motor;

3. Rolling wheel clamping devices are applied to ensuring neat and      precise mounting of magnetic stripe. The air cylinder pressure is      adjustable; Automatic tension control system is applied in material feeding to        ensure that the film roll conveying is kept smooth and even in  tension.

4. The film cutting unit is driven by air cylinder to ensure reliable operation;

5. Magnetic stripe back foil can be automatically collected by waste system.

6. Air shaft loading system is applied to make loading and unloading of film roll easier and more convenient;

7. The heating temperature control is by heating tube with imported temperature probe and temperature control module for accurate temperature control (±0.5℃).

8. Each single magnetic stripe laying head can be adjusted in temperature and pressure.

Automatic Magnetic Stripe Laying Machine is also named as Automatic Magnetic Stripe Pasting Machine, Magnetic Stripe Paster or Magnetic Stripe Applicator.
