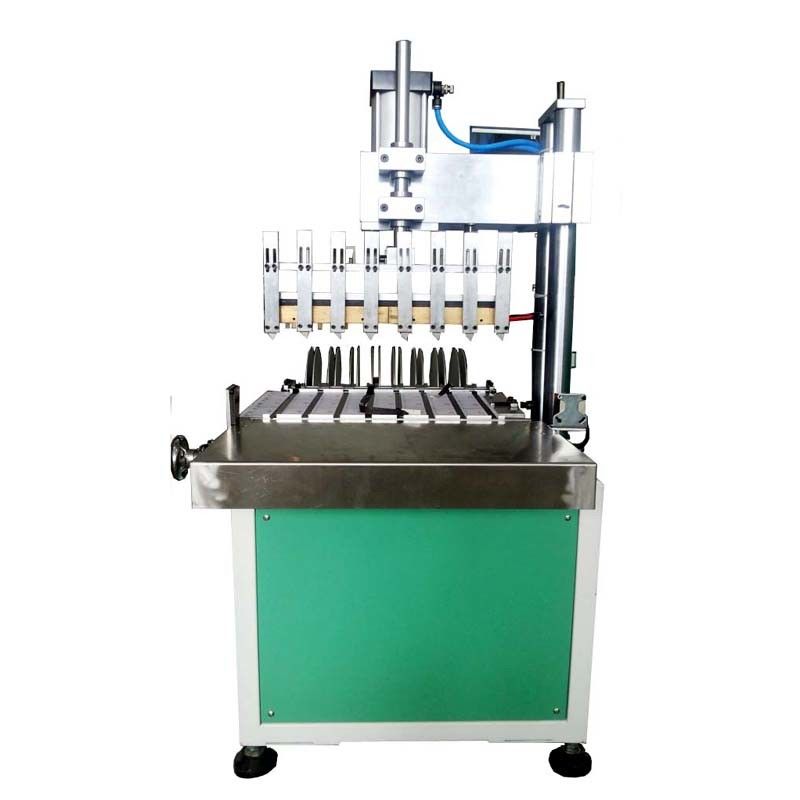

Manual Magnetic Stripe Bonding Machine 200-400 sheets/h YMSB-1

Name: Manual Magnetic Stripe Bonding Machine 200-400 sheets/h YMSB-1
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YMSB-1
Availability: InStock

Product Details

Place of Origin: China

Brand Name: YL

Model Number: YMSB-1

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiable

Packaging Details: Standard export plywood case

Delivery Time: 25-30days

Payment Terms: T/T, Western Union, MoneyGram, Western Union

Supply Ability: 5 sets per quater

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                400sheets/h magnetic stripe bonding machine, 3 KW magnetic stripe bonding machine


Power Supply:	AC 380V/50 HZ	Air Resource:	6 Kg/c㎡(dry)
Power:	3 KW	Temperature:	0-400℃(adjustable)
Temp. Precision:	±2℃	Mag. Stripe Bonding Precision:	±0.2mm
Weight:	150Kg	Productivity:	200-400 Sheets/h
Mag. Stripe Model:	ISO/IEC7811 HiCo/LoCo	Mag. Stripe Width:	12.7mm / 6.35mm, Wheel Diameter: 380mm
Mag. Stripes Qty.:	5~8 Tapes Optional	Layout:	3X8, 4X8, 5X5 (optional)
Operator Number:	1	Dimension:	L800×W700×H1500mm
Applicable Materials:	Plastic Sheet: 0.25~0.8mm Thick

Power Supply:	AC 380V/50 HZ
Air Resource:	6 Kg/c㎡(dry)
Power:	3 KW
Temperature:	0-400℃(adjustable)
Temp. Precision:	±2℃
Mag. Stripe Bonding Precision:	±0.2mm
Weight:	150Kg
Productivity:	200-400 Sheets/h
Mag. Stripe Model:	ISO/IEC7811 HiCo/LoCo
Mag. Stripe Width:	12.7mm / 6.35mm, Wheel Diameter: 380mm
Mag. Stripes Qty.:	5~8 Tapes Optional
Layout:	3X8, 4X8, 5X5 (optional)
Operator Number:	1
Dimension:	L800×W700×H1500mm
Applicable Materials:	Plastic Sheet: 0.25~0.8mm Thick

Product Description

Manual Magnetic Stripe Bonding Machine YMSB-1

1. Function and application of Manual Magnetic Stripe Bonding Machine YMSB-1

Magnetic Stripe Bonding Machine YMB-1 is designed for positioning and bonding magnetic strip to plastic sheet before lamination.

It is controlled by relay. The temperature is controlled by reliable imported temperature controller, and the time is controlled by time relay.

Double air cylinder is used as power, and the bonding head pressure is adjustable.

2. Technical parameters Manual Magnetic Stripe Bonding Machine YMSB-1

Power supply	AC 380V/50 HZ	Mag. stripe model	ISO/IEC7811 HiCo/LoCo
Air resource	6 kg/c㎡(dry)	Mag. stripe width	12.7mm / 6.35mm, wheel diameter: 380mm
Power	3 KW	Mag. stripes Qty.	5~8 tapes optional
Temperature	0-400℃(adjustable)	layout	3X8, 4X8, 5X5 (optional)
Temp. precision	±2℃	Operator number	1
Mag. stripe bonding precision	±0.2mm	Dimension	L800×W700×H1500mm
Weight	150KG	Applicable materials	Plastic sheet: 0.25~0.8mm thick
Productivity	200-400 sheets/h
