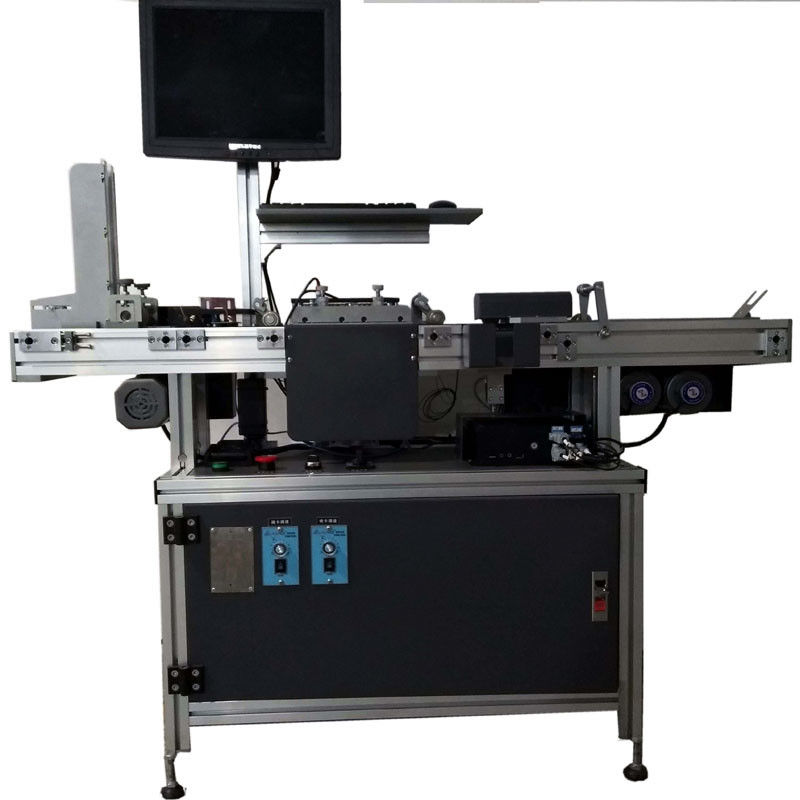

RFID And Magnetic Card Encoder Machine Full Automatic 8000 Cards/Hour YDE-1

Name: RFID And Magnetic Card Encoder Machine Full Automatic 8000 Cards/Hour YDE-1
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YDE-1
Availability: InStock

Product Details

Place of Origin: China

Brand Name: YL

Model Number: YDE-1

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiable

Packaging Details: 1 plywood case

Delivery Time: 30-35days

Payment Terms: T/T, Western Union, D/P, D/A

Supply Ability: 1 set per 35 days

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                full auto magnetic card encoder machine, 8000Cards/Hour magnetic card encoder machine


Speed:	8000 Cards/hour For Magnetic Encoding Operation 6000-7000 Cards/hour For RFID Chip Reading Operation. 2000- 4000 Cards/hour For Chip Data Writing Operation.	Magnetic Record Density:	2.210 BPI For Track 1; 75 Or 210 BPI For Track 2; And 210 BPI For Track3
Applicable Magnetic Tripe:	HiCo/LoCo, 300 Oe-4000 Oe, 3 Tracks, 12.7mm Wide	Applicable Card Type:	Standard CR80 Card, 0.3mm-1mm Thickness
Power Supply:	AC220V, 50/60Hz	Power:	6.1kW
Net Weight:	7.120kg	Machine Size:	L1400×W400×1300mm
Package Size &weight:	9.1 Plywood Case, GW 165KG, L1550×W550×1380mm	Magnetic Writing Head Service Lifetime:	10.200,000 To 300,000 Times
Magnetic Reading Head Service Lifetime:	11.400,000 To 500,000 Times.

Speed:	8000 Cards/hour For Magnetic Encoding Operation 6000-7000 Cards/hour For RFID Chip Reading Operation. 2000- 4000 Cards/hour For Chip Data Writing Operation.
Magnetic Record Density:	2.210 BPI For Track 1; 75 Or 210 BPI For Track 2; And 210 BPI For Track3
Applicable Magnetic Tripe:	HiCo/LoCo, 300 Oe-4000 Oe, 3 Tracks, 12.7mm Wide
Applicable Card Type:	Standard CR80 Card, 0.3mm-1mm Thickness
Power Supply:	AC220V, 50/60Hz
Power:	6.1kW
Net Weight:	7.120kg
Machine Size:	L1400×W400×1300mm
Package Size &weight:	9.1 Plywood Case, GW 165KG, L1550×W550×1380mm
Magnetic Writing Head Service Lifetime:	10.200,000 To 300,000 Times
Magnetic Reading Head Service Lifetime:	11.400,000 To 500,000 Times.

Product Description

RFID and Magnetic Card Encoder YDE-1

Mini Card Data Encoder Economic Card Data Personalization Machine RFID Card Tester RFID and Magnetic Card Encoder YDE-1

1. Introduction of RFID and Magnetic Card Encoder YDE-1

It is designed to realize the following card data processing functions:

RFID card electrical performance test (check chip circuit inside RFID card good or not, if not good, the bad cards will be rejected);
RFID card chip data reading, data writing or password change (1 RFID encoding head is applied, It can read UID from almost all the RFID card chips (HF/LF chip) in the existing market. It can writing data, change initial passwords or sect keys in such RFID chips including Mifare S50, S70, Ultralight, Ultralight-C, Mifare Plus, Ntag203, Ntag213, Ntag216, Icode-2, FM11RF005M, EM4100(ID), ATA5577, EM4305).
Encode Magnetic stripe with the source data file
Encode magnetic stripe with the RFID Chip data read by RFID encoding unit.

Speed	8000 cards/hour for magnetic encoding operation. 6000-7000 cards/hour for RFID chip reading operation. 2000- 4000 cards/hour for Chip data writing operation.
Magnetic Record Density	210 BPI for track 1; 75 or 210 BPI for track 2; and 210 BPI for track3
Applicable Magnetic tripe	HiCo/LoCo, 300 oe-4000 oe, 3 tracks, 12.7mm wide
Applicable Card type	Standard CR80 card, 0.3mm-1mm thickness
Power supply	AC220V, 50/60Hz
Power	1kW
Net Weight	120kg
Machine size	L1400×W400×1300mm
Package size &weight	1 plywood case, GW 165KG, L1550×W550×1380mm
Magnetic writing head service lifetime	200,000 to 300,000 times
Magnetic reading head service	400,000 to 500,000 times
