Smart RFID Chip Card Data Personalization Machine PLC + Industrial Computer Controlled

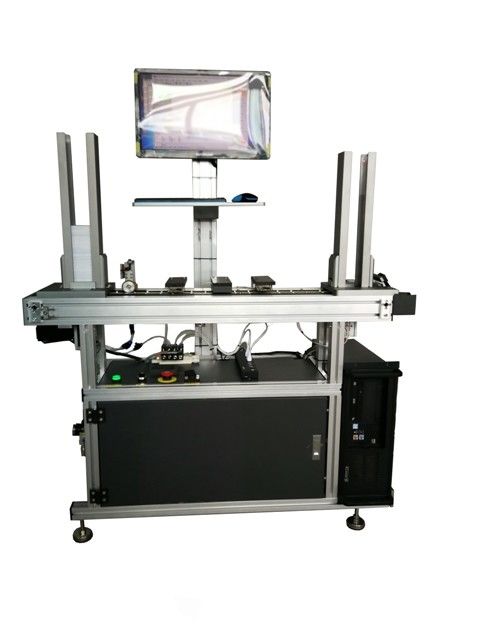

PLC + Industrial Computer Controlled Smart RFID Card Data Personalization Machine YRFC-DP-3000

Smart RFID Card Data Personalization Machine YRFC-DP-3000

Smart RFID Card Data Encoder YRFC-DP-3000

Smart RFID Card Data Writer YRFC-DP-3000

Smart RFID Card Data Encryption Machine YRFC-DP-3000

Smart RFID Card Data Verification Machine YRFC-DP-3000

1. Introduction of SPLC + Industrial Computer Controlled Smart RFID Card Data Personalization Machine YRFC-DP-3000

Smart RFID Card Data Personalization Machine YRFC-DP-3000 is developed for the operation of data personalization (data reading/writing, encryption/change key and data verification) on RFID chip cards including high-frequency HF cards, low-frequency LF cards and UHF card ( the UHF card reader is available as optional part).

2. Machine Functional Configuration of PLC + Industrial Computer Controlled Smart RFID Card Data Personalization Machine YRFC-DP-3000

Card suction type card feeder – overlapped card detection - low-frequency ID card reading and writing unit- HF RFID data reading and writing unit - ultra-high frequency reading and writing unit (optional) - bad card rejection unit- good card collection unit

Introduction to device functional modules:

1). Card vacuum suction structure: Adopting card vacuum suction structure can effectively prevent card surface scratches.

2). Overlapped card detection: used to detect the issuance of sending two cards at the same time. When two cards appear, the device automatically suspends card issuance.

3). LF low-frequency reading and writing unit: card UID reading, data writing, key encrypting and data verifying of ID card data.

4). HF RFID card reading and writing unit: card UID reading, data writing, key encrypting and data verifying of HF RFID cards.

5). Ultra-high frequency card reading and writing unit: card UID reading, data writing, key encrypting and data verifying of ultra-high frequency magnetic cards.

6). Card rejection unit: By reading the data inside the card and comparing it with the original database. Remove erroneous data cards and save records;

Note: This device can add laser engraving unit according to customer needs, and each functional module can be selected by customers themselves.

Smart RFID Card Data Personalization Machine YRFC-DP-3000 is also names as Smart RFID Card Data Encoder, Smart RFID Card Data Writer, smart RFID Card Data Encryption Machine or Smart RFID Card Data Verification Machine.

3. Technical Parameters of PLC + Industrial Computer Controlled Smart RFID Card Data Personalization Machine YRFC-DP-3000

1.) Dimensions: L1300mm*W550mm*H1500mm

2.) Weight: 120 Kg

3.) Power supply: 220V 50/60 Hz

4.) Compressed air: ≤ 6.5KG/CM2

5.) Control form: PLC + industrial computer

6.) Material specifications: ISO standard card, no deformation. No sharp edges, no static electricity

7.) Working speed: >3600 cards/hour;

4. Application of PLC + Industrial Computer Controlled Smart RFID Card Data Personalization Machine YRFC-DP-3000

Smart RFID Card Data Personalization Machine YRFC-DP-3000 is also names as Smart RFID Card Data Encoder, Smart RFID Card Data Writer, smart RFID Card Data Encryption Machine or Smart RFID Card Data Verification Machine.
