Easy Operated Contactless Card Inlay Production Line Position Side Hole Puncher

        Contactless RFID inlay Position Side Hole Puncher Side Hole Punch YHP-S

 Position Side Hole Puncher/Inlay SheetSide Hole Punch/Inlay SheetPosition Hole Die Cutter YHP-S

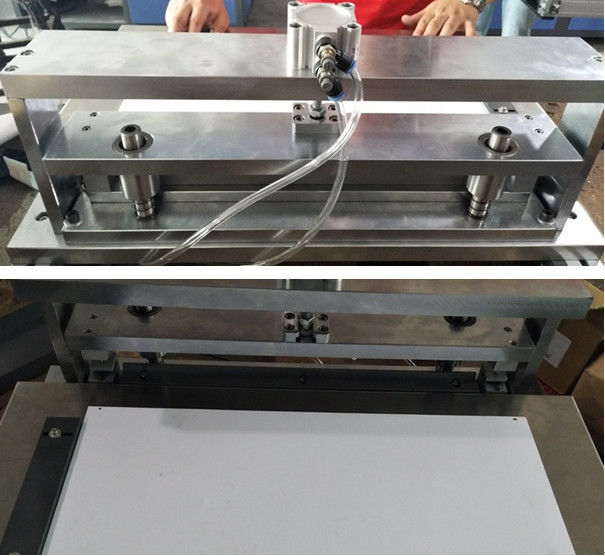

1. Introduction of Contactless RFID inlay Position Side Hole Puncher Side Hole Punch YHP-S

The machine is specially designed for punching the side positioning holes (two holes)on INLAY middle sheet at the same time.

2. Feature of Contactless RFID inlay Position Side Hole Puncher Side Hole Punch YHP-S

The machine is specially designed for punching the side positioning holes (two holes)on INLAY middle sheet at the same time.

3. Technical Paramter of Contactless RFID inlay Position Side Hole Puncher Side Hole Punch YHP-S

1. ) Speed: 800-1000 sheets per hour.
2. ) Operator needed: 1 person
3. ) sheet Layout:3*8
4. ) Punched hole diameter: 3mm
5. ) Hole central point distance:350mm
6. ) Compressed air: 5-6kg/cm2, around 5 liters/minute
7. ) Gross weight: around 20 kg
8. ) Dimension: L560×W500×H320

4. Application of Contactless RFID inlay Position Side Hole Puncher Side Hole Punch YHP-S

Start massive production, and first of all punching  Position Side Hole Puncher/Inlay SheetSide Hole Punch/Inlay SheetPosition Hole Die Cutter YHP-S in the INLAY middle sheet in one machine

Operator needed: 1 person

Machine quantity needed:

Position Side Hole Puncher/Inlay SheetSide Hole Punch/Inlay SheetPosition Hole Die Cutter YHP-S, 1 set (speed: 800-1000 sheets per hour.)
