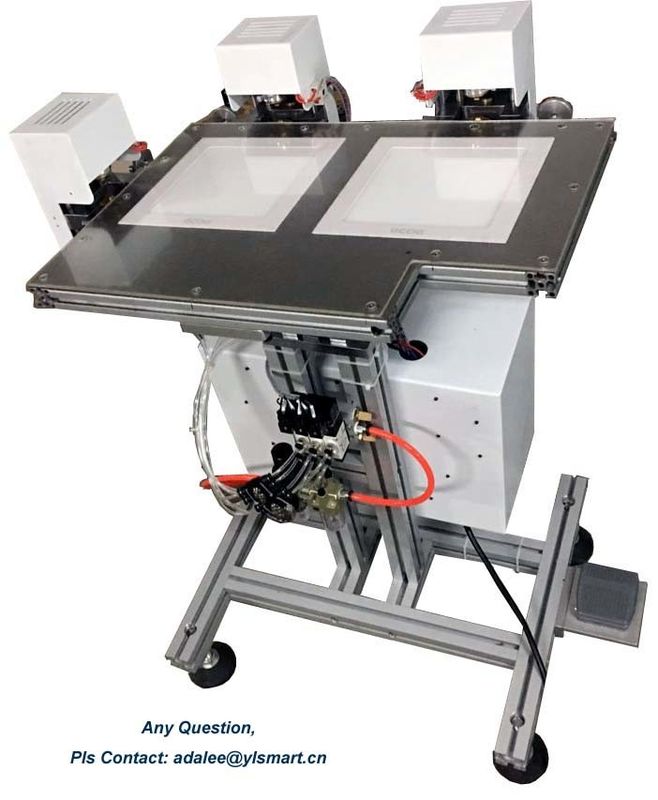

Manual Card Sheet Collating And Bonding Machine With Double Cylinders
Manual Card Sheet Collating And Bonding Machine With Double Cylinders

Manual Card Sheet Collating And Bonding Machine With Double Cylinders

Product Details

Place of Origin: China

Brand Name: YL

Model Number: YLB-1

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: 1 plywood case

Delivery Time: 45 work days

Payment Terms: T/T, Western Union, D/P, D/A

Supply Ability: 1 set per 45 days

Get Best Price

Product Details

Product Description
Product Details
Highlight:

2KW card sheet collator and bonder

,

smart card sheet collating machine

,

double cylinders card sheet bonding machine

Power Supply:
AC 220V/50 HZ
Air Source:
6 Kg/c㎡(Dry)
Total Power:
2KW
Temp Control Range:
0-400℃
Weld Spot Quantity:
2-3 (adjusted Position)
Weight:
Approx 50Kg
Available Sheet:
3X8、4X8、5X5
Operator:
1 Person
Power Supply:
AC 220V/50 HZ
Air Source:
6 Kg/c㎡(Dry)
Total Power:
2KW
Temp Control Range:
0-400℃
Weld Spot Quantity:
2-3 (adjusted Position)
Weight:
Approx 50Kg
Available Sheet:
3X8、4X8、5X5
Operator:
1 Person
Product Description

Manual Card Sheet Collator and Bonder

Manual Sheet Collating and Bonding Machine Manual Card Sheet Collator and Bonder YLB-1



1. Introduction of Manual Card Sheet Collator and Bonder



It is also called card sheet bonding machine, card sheet collating machine, INLAY sheet bonding machine, manual card sheet collating and bonding machine, card machine, smart card machine



It's controlled by solid relay, the machine applies the imported temperature control system for temperature controlling, and time relay is used to control bonding time.

It can bond the materials as below:
PVC, ABS, PET, etc;



Note: different materials have different bonding parameters (like temperature, Time and Pressure)



Power Supply

AC 220V/50 HZ

Weld Spot Quantity

2-3 (adjusted position)

Air Source

6 kg/c㎡(Dry)

Weight

Approx 50Kg

Total Power

2KW

Available Sheet

3X8,4X8,5X5

Temp Control Range

0-400℃

Operator

1 person

Temp Control Precision

±2℃

Dimension

L600×W500×H800mm

Capacity

800~1200 sheet/hour















2. Key Features of Manual Card Sheet Collator and Bonder:





1. The machine uses double cylinders for moving power, and the pressure is adjustable.
2. It is equipped with 3 bonding heads. The bonding position can be adjusted.

3. It applies electrical heater to heat up and uses the temperature controller to control the temperature.

4. Bonding time is controlled by time relay, and it is simple to set.
