RFID Card INLAY Sheet Antenna Implanting Copper Wire Embedding Machine YAE-25

RFID Card INLAY Sheet Antenna Implanting Copper Wire Embedding Machine YAE-25

1. Description of RFID Card INLAY Sheet Antenna Implanting Copper Wire Embedding Machine YAE-25

This machine is designed for embedding or implanting the copper wire onto INLAY middle sheets as per the designed track with advanced ultrasonic technology.

 It is well known as the most reliable and economical machines in INLAY sheet production.

Mitsubishi 3-axis servo control and MOXA motion control system are applied in the control system to ensure high position precision.

The antenna shape and size can be easily designed in AUTOCAD software.

The antenna embedding applies the advanced ultrasonic technology in order to ensure good embedding result and high efficiency.

2.Other Features of RFID Card INLAY Sheet Antenna Implanting Copper Wire Embedding Machine YAE-25

 As an indispensable machine of RFID card INLAY production line, Contactless Card Antenna Embedding Machine YAE-25 is also known or named as RFID Card INLAY Sheet Antenna Implanting Machine, RFID Card Prelam Sheet Antenna Implanter or Contactless Card Copper Wire Embedder YAE-25.

3. More details of RFID Card INLAY Sheet Antenna Implanting Copper Wire Embedding Machine YAE-25

1. ) Speed: 1500-2000 pcs per hour.

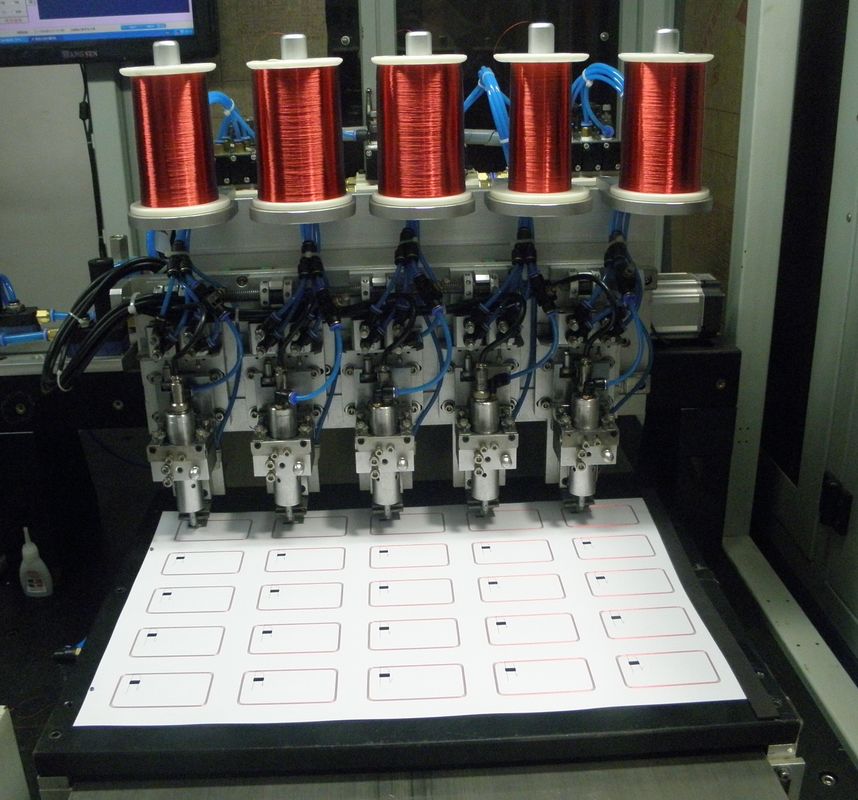

2. ) Embedding head number: 5 heads for 5*5 layout.
3. ) Worktable number: 2 worktables
4. ) Power supply: AC220V 50/60HZ 25A
5. ) Power: 3KW
6. ) Compressed air: 6 kg/cm²
7. ) Air Consumption: 80 L/min.
8. ) Control mode: MOXA motion contorl+Mitsubishi servo
9. ) Precision: servo step indexing=0.0125
10. ) Mechanical adjustment precision: 0.01mm.

Finished products- well embedded RFID card inlay sheet

4. Packing of RFID Card INLAY Sheet Antenna Implanting Copper Wire Embedding Machine YAE-25

It's well packed by protection film inside and outside with export standard plywood case, normally, one plywood package is enough for the machine room.
