1. Introduction of Contactless Card Prelam Speedy Inlay Sheet Antenna Embedding Machine YAE-416

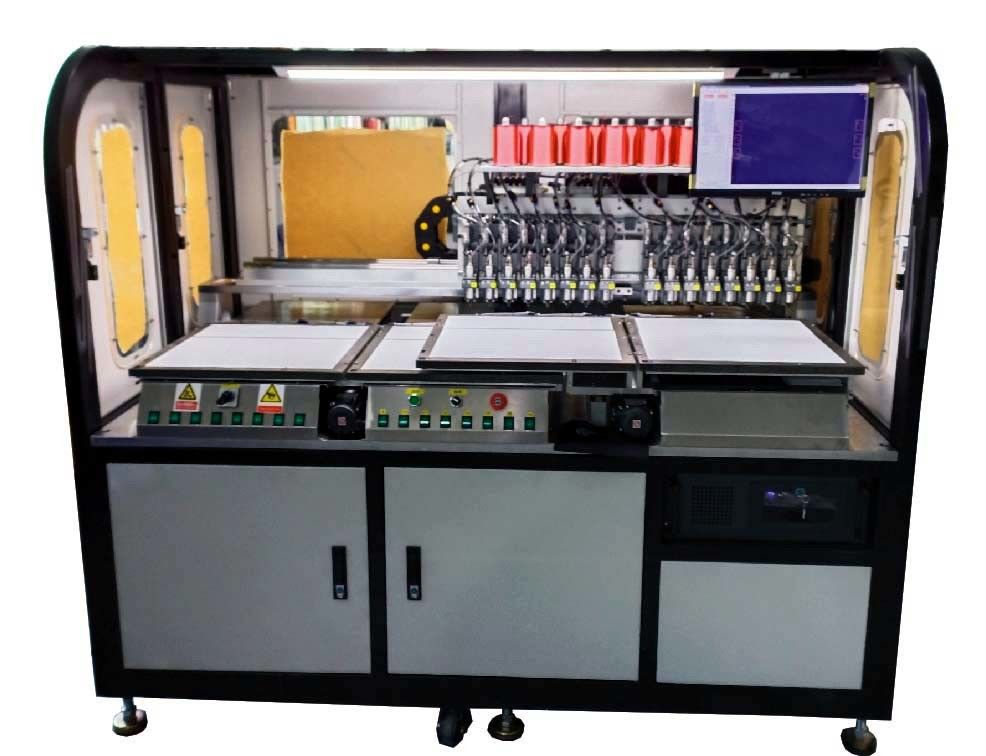

This machine is designed for embedding or implanting the copper wire onto RFID card INLAY middle sheets as per the designed antenna winding file with the advanced ultrasonic technology. It has totally 16 embedding heads with 4 work tables to ensure the higher work efficiency.

As an indispensable machine of RFID card INLAY production line, Contactless Card Antenna Embedding Machine YAE-216 is also known or named as RFID Card INLAY Sheet Antenna Implanting Machine, RFID Card Prelam Sheet Antenna Implanter or Contactless Card Copper Wire Embedder YAE-416.

2. Features of Contactless Card Prelam Speedy Inlay Sheet Antenna Embedding Machine YAE-416

• High-end 3-axis servo control and MOXA motion control system are applied in the control system to ensure high position precision.
• The antenna shape and size can be easily designed in AUTOCAD 2004 software.
• The antenna embedding applies the advanced ultrasonic technology in order to ensure good embedding result and high efficiency.

3. Technical Parameter of Contactless Card Prelam Speedy Inlay Sheet Antenna Embedding Machine YAE-416

1. ) Speed: 6000-7000 cards/hour for normal coil, 4000-4500 cards/hour for DI card antenna coil.
2. ) Embedding head number: 16 heads suitable for 3*8 or 4*8 layout.
3. ) Worktable number: 4 worktables
4. ) Dimension: L2000×W1150×H1800mm
5. ) Weight: 1200 KG
6. ) Power supply: AC220V 50/60HZ
7. ) Power: 4KW
8. ) Compressed air: 150L/M,6 kg/cm²
9. ) Control mode: PLC+ industrial computer
10. ) Precision: ±0.02mm

4. Application of Contactless Card Prelam Speedy Inlay Sheet Antenna Embedding Machine YAE-416

Automatically embed or implant the designed copper wire antenna onto INLAY middle sheet in a precise way. Usually there are three sheets to be laminated into one INLAY sheet.

Machine model needed:

Contactless Card Antenna Embedding Machine YAE-416 (16 embedding heads/4 work tables for sheet layout 3×8,4×8,6×8 or 7×8, if the layout is 5*5, we will use YAE-410 with 5 heads for each worktable)

Machine quantity needed:

Contactless Card Antenna Embedding Machine YAE-416 (1 set)

Speed: 6000-7000 units per hour.
