Special Shape Card Punching Machine , Customized Shape Card Die Cutter Machine

Name: Special Shape Card Punching Machine , Customized Shape Card Die Cutter Machine
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YLFP-SP-XY
Availability: InStock

Product Details

Place of Origin: China

Brand Name: YL

Model Number: YLFP-SP-XY

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Standard export plywood case

Delivery Time: 30-35days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 5 sets per quarter

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                customized shape card punching machine, special shape card die cutter machine


Power Supply:	AC 380V/50 HZ	Suitable Material:	PVC, ABS, Paper Card Etc.
Power:	5.5KW	Maximum Layout:	350X600mm(Max)
Air Supply:	6 Kg/c㎡(no Water)	Output:	4000~6000 Pcs /hour(depends On The Punch Head Number)
Air Consumption:	About 70L/min	Control Mode:	PLC Program+ Servo System
Weight:	850kg	Number Of Operators:	1 Person
Punch Precise:	±0.10mm	Dimensions:	L1700×W1080×H1600mm

Power Supply:	AC 380V/50 HZ
Suitable Material:	PVC, ABS, Paper Card Etc.
Power:	5.5KW
Maximum Layout:	350X600mm(Max)
Air Supply:	6 Kg/c㎡(no Water)
Output:	4000~6000 Pcs /hour(depends On The Punch Head Number)
Air Consumption:	About 70L/min
Control Mode:	PLC Program+ Servo System
Weight:	850kg
Number Of Operators:	1 Person
Punch Precise:	±0.10mm
Dimensions:	L1700×W1080×H1600mm

Product Description

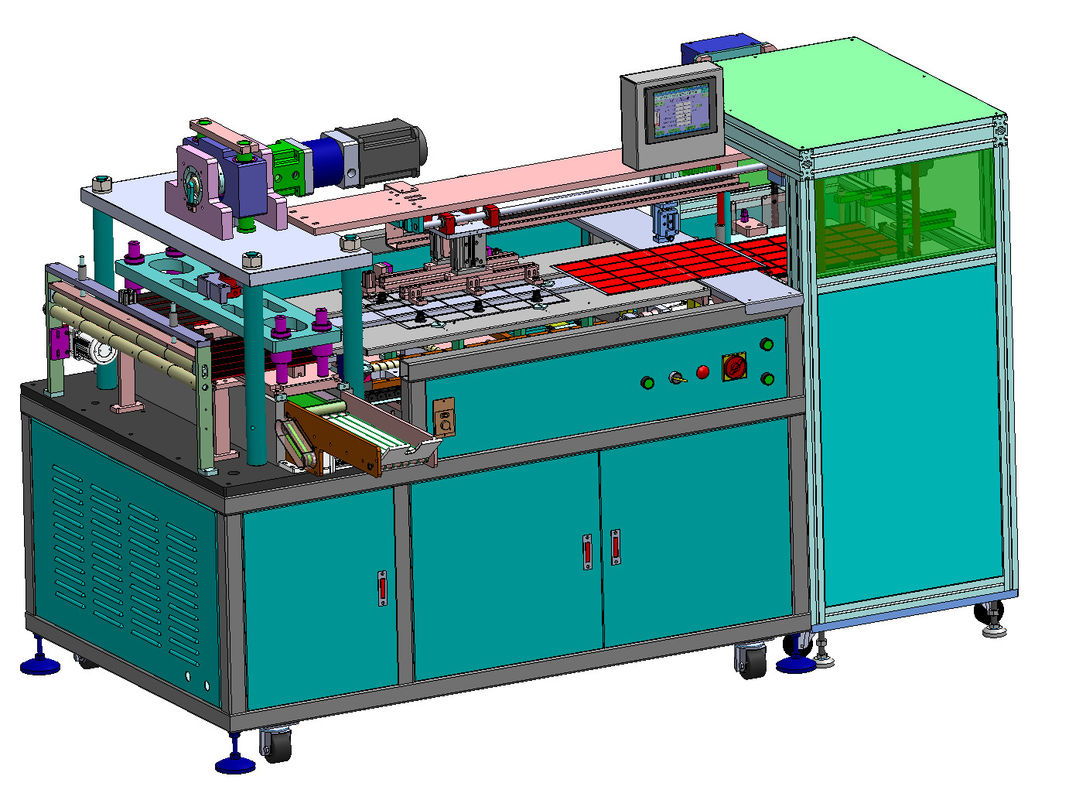

Full Automatic Special Shape Card Puncher YLFP-SP-XY

1. Introduction of Full Automatic Special Shape Card Puncher YLFP-SP-XY

The machine is designed for punching the big laminated sheets into special shape card (specially shaped card, abnormal shape card or customized shape card) in a fully automatic way. It has the pick-placing unit for printed sheet picking and placing purpose. It adopts touch screen with friendly man-machine interface operation, and two groups of servo driven screw module in X and Y direction is used for plastic sheet feeding, and it can realizes the two-direction positioning feeding in X and Y axis with high punching precision.

The card making machine -Full Automatic Special Shape Card Puncher YLFP-SP-XY. is also known as Customized Shape Card Puncher, Specially Shaped Card Die Cutter or Abnormal Shape Card Die Cutter YLFP-SP-XY.

2. Functional features of Full Automatic Special Shape Card Puncher YLFP-SP-XY

Its distance can be freely adjusted according to the printed sheet layout, and the material punching does not need to be cut in advance.

The high-power servo motor applied in the machine has the advantages of low power noise, stable power output and adjustable punching speed. When it is needed to punch cards with different thickness, its performance is much better.
10 sets of layout position parameters can be stored in the system, which is convenient to call out and use, and it is convenient to change different punched products.
The PLC program control can realize automatic operation and can give an timely problem alarm and operation shutdown.

3. Technical Parameter of Full Automatic Special Shape Card Puncher YLFP-SP-XY

Power supply	AC 380V/50 HZ	Suitable material	PVC, ABS, paper card etc.
Total power	5.5 KW	Maximum layout	350X600mm(Max)
Air supply	6 kg/c㎡(no water)	Output	4000~6000 pcs /hour(depends on the punch head number)
Air consumption	About 70L/min	Control mode	PLC program+ servo system
Weight	850kg	Operator	1 Person
Punch precise	±0.10mm	Dimensions	L1700×W1080×H1600mm

4. Samples of big sheets to be punched:

Special Shape Card Punching Machine , Customized Shape Card Die Cutter Machine 0

Special Shape Card Punching Machine , Customized Shape Card Die Cutter Machine 1
