Grained Finish Card Lamination Aluminum Plate with 25-35HV Surface Hardness

                2.1-5.5um Value Range 25-35HV Surface Hardness Grained Finish Card Lamination Aluminum Plate YAP-G

card lamination aluminum plate, laminator aluminum plate, textured laminating steel plate, special pattern lamination plate, card finish Grained lamination plate, card production material

1. Introduction of 2.1-5.5um Value Range 25-35HV Surface Hardness Grained Finish Card Lamination Aluminum Plate YAP-G

Aluminum Plate, Lamination Aluminum Plate, Lamination Grained Plate are applied as the consumables in plastic card lamination. It can well ensure perfect plastic card surface finish after lamination. Our plates are being widely used by many card factories in both China and foreign countries worldwide.

2. Features of 2.1-5.5um Value Range 25-35HV Surface Hardness Grained Finish Card Lamination Aluminum Plate YAP-G

1.) The two sides are covered with protection foils (blue thin films) to ensure good protection on both surfaces. There is no glue left after the foil is removed before the plate is used at the first time.

2.) Two sides are made Grained in the same quality.

3.) There are no scratches, dents, stripes shadows and dust on plate surfaces.

4.) The edges are smooth and deburred with the round curved corners.

5.) After lamination, the plates are not sticking to the laminated plastic sheets.

3. Technical Parameter of 2.1-5.5um Value Range 25-35HV Surface Hardness Grained Finish Card Lamination Aluminum Plate YAP-G

Plate size(L×W): A4, A3 or custom-made size

Plate thickness: 1.0 mm (Thickness tolerance: ±0.05mm)

Dimension tolerance: ±1mm for length and width.

Plate flatness level: maximum 1 mm.m

Surface roughness value range: 2.1-5.5um

Packaging box: solid plywood carton with soft cushion protection inside.

Surface hardness: 25-35HV

4. Application of 2.1-5.5um Value Range 25-35HV Surface Hardness Grained Finish Card Lamination Aluminum Plate YAP-G

Product introduction:

Steel plate imported from the top raw material supplier, which has the advantage of good conducting of heat, resisting pressure, high quality mirror. By our steel plates you can produce the international standard card. With more than 10 years of experience of marketing and marketing operation, we have export the best quality steel plates for all our widely card making customers.

There are five kinds of steel plates:

1). Glossy/Mirror finish steel plates

normal mirror effect, for planographic code and inkjet code.

2). Matte steel plates-Fine matte(Ra:0.25-0.5um)

on the surface there are tiny lights, thin and lubricious, for planographic code and inkjet code.

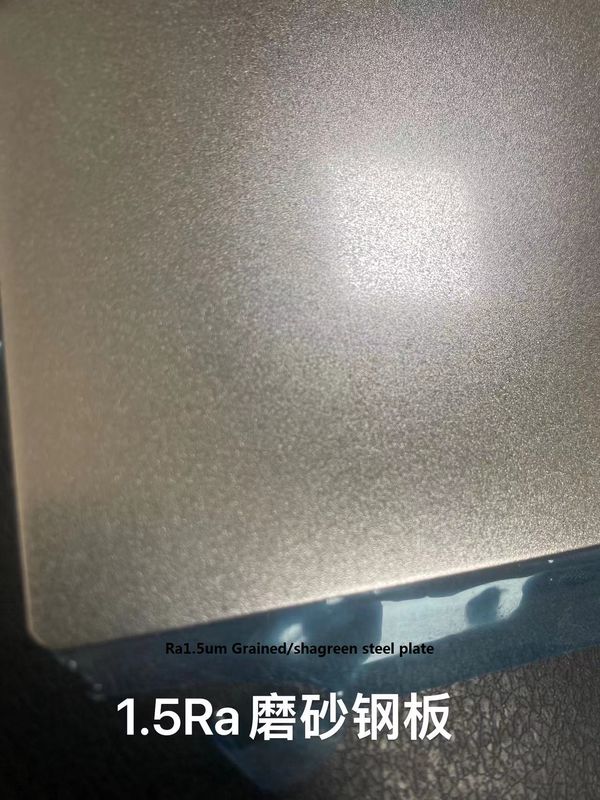

3). Coarse matte steel-Heavy matte(Ra:1.0-2.0um)

Platoon lights on the surface, too coarse for planographic code.

4). Silk-Satin finish plate for RFID inlay production(fine silk and fine silk)

no lights on the surface, moderate coarse.

5). Pattern steel plates

There are kinds of pattern for plates
