Patterned / Textured Card Lamination Steel Plate Custom Size 0.8mm Thick

                Custom-Made Size 0.8mm Thick Patterned/Textured Card Lamination Steel Plate YSP-P For Pattern Card

card lamination steel plate, laminator steel plate, textured laminating steel plate, special pattern lamination plate, card finish lamination plate, card production material

1. Introduction of Custom-Made Size 0.8mm Thick Patterned/Textured Card Lamination Steel Plate YSP-P For Pattern Card

Special pattern lamination steel plates are mainly used for personalized pattern finish card lamination. It can well ensure perfect plastic card surface finish after lamination. Our plates are being widely used by many card factories in both China and foreign countries worldwide.

2. Features of Custom-Made Size 0.8mm Thick Patterned/Textured Card Lamination Steel Plate YSP-P For Pattern Card

1). One side (pattern side) is covered with protection foils (blue thin films) to ensure good protection.

2). Only one side has the special pattern and another side has no pattern which will not contact the card surface in laminator. .

3). There are no scratches and dust on pattern surface and possibly there is slight scratch on another non-pattern side.

4). The edges are smooth and deburred with the round curved corners.

3. Technical Parameter of Custom-Made Size 0.8mm Thick Patterned/Textured Card Lamination Steel Plate YSP-P For Pattern Card

Plate size(L×W): A4, A3 or custom-made size

Plate thickness: 0.8 mm (Thickness tolerance: ±0.05mm)

Dimension tolerance: ±1mm for length and width.

Plate flatness level: maximum 1 mm.m

Surface pattern: special pattern

Surface hardness: HRC80±20

Thermal transmission: 0.04cal/℃.cm.sec at 20℃

Packaging box: solid plywood carton with soft cushion protection inside.

4. Application of Custom-Made Size 0.8mm Thick Patterned/Textured Card Lamination Steel Plate YSP-P For Pattern Card

Product introduction:

Steel plate imported from the top raw material supplier, which has the advantage of good conducting of heat, resisting pressure, high quality mirror. By our steel plates you can produce the international standard card. With more than 10 years of experience of marketing and marketing operation, we have export the best quality steel plates for all our widely card making customers.

There are five kinds of steel plates:

1).Glossy/Mirror finish steel plates

normal mirror effect, for planographic code and inkjet code.

2).Matte steel plates-Fine matte(Ra:0.25-0.5um)

on the surface there are tiny lights, thin and lubricious, for planographic code and inkjet code.

3).Coarse matte steel-Heavy matte(Ra:1.0-2.0um)

Platoon lights on the surface, too coarse for planographic code.

4).Silk-Satin finish plate for RFID inlay production(fine silk and fine silk)

no lights on the surface, moderate coarse.

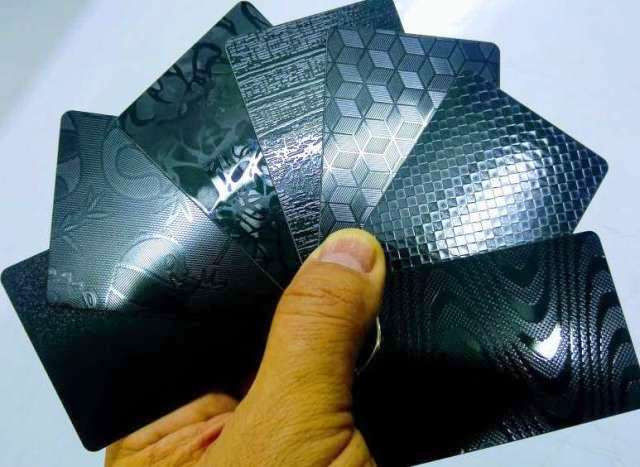

5).Pattern steel plates

There are kinds of pattern for plates

Backed by a team of adroit professionals, we are actively engrossed in supplying the top-of-the-line A4 and A3 Laminating Pattern Steel Plates for Card Making that is popularly known among our customers owing to its unique quality and resilience. These patterns steel plates are made in our ultra-advanced production site with the help of pioneering in-house tools and techniques. Due to its longevity and reliable performance, we are seeing a huge demand for the product in the marketplace.
