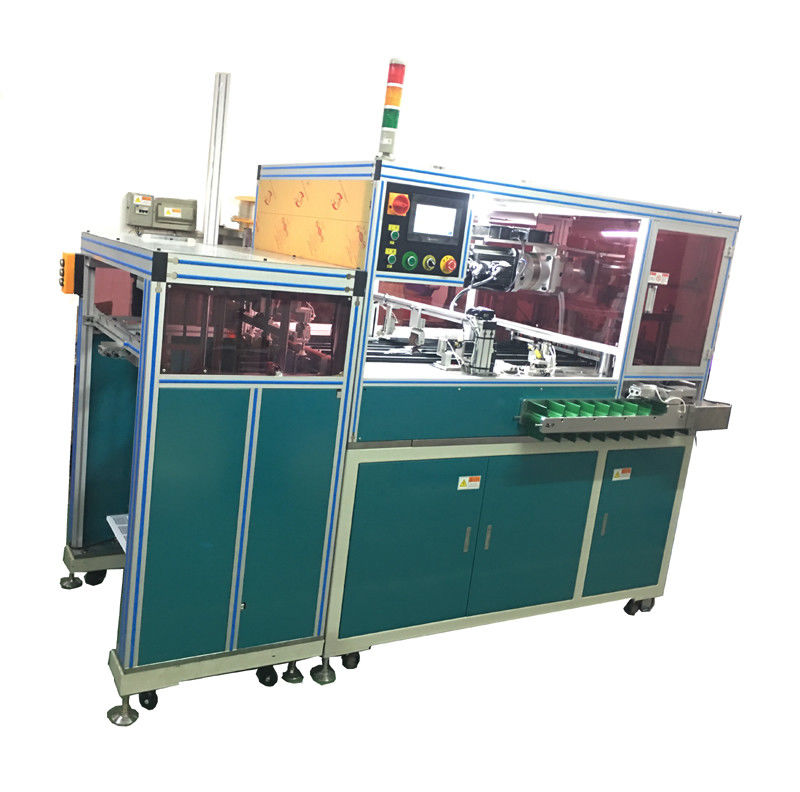

High Speed and Precison Full Automatic Poker Card Punching Machine YLP-APC-800

                                               High Speed and Precison Full Automatic Poker Card Punching Machine YLP-APC-800

Full Automatic Poker Card Punching Machine/Full Auto Poker Playing Card Puncher/Poker Playing Card Die Cutter/Poker Card Die Cutting Machine YLP-APC-800

1.  Machine Introduction  of High Speed and Precison Full Automatic Poker Card Punching Machine YLP-APC-800

This machine is designed for punching the poker playing card paperboard (normally 6*9 layout) into the standard poker cards and collect them as one set (normally 54 cards per set) in a full automatic and precise way. It applies the special paperboard sheet lading and feeding mechanism. It adopts touch screen with friendly man-machine interface operation, and the high-power servo motor works as punching power.

The high-sensitivity laser sensor cooperates with two sets of stepping systems for vertical search cursor positioning and servo motor-driven ball screw for horizontal search cursor positioning and feeding. It realizes the two-direction positioning of X and Y axes in the plane, and the punching accuracy is not affected by the cutting accuracy of the plastic sheet edge, so that the positioning accuracy is less than ±0.10mm.

The professional card collection structure design makes it suitable for punching and sorting collection of poker playing cards and serial number plastic cards.

2. Key futures of High Speed and Precison Full Automatic Poker Card Punching Machine YLP-APC-800

21. With high sensitivity photoelectric sensor and high-quality imported servo system, the position parameters of each punching point can be adjusted with high precision.
21. The high-quality imported ball screw guide is adopted for step feeding with the feature of high precision and long service life.
21. Full automatic sheet suction and feeding feature is available which can greatly reduce labor level and improve the punching efficiency meanwhile.
21. The high power servo motor is used as punching power with low noise, stable power and adjustable punching speed.
21. Both automatic search cursor positioning punching mode and side positioning punching mode are available, and the punching style is flexible and practical.
21. The PLC program control can realize automatic operation and can give an timely problem alarm and operation shutdown with the display of solution.

3. Technical Parameter of High Speed and Precison Full Automatic Poker Card Punching Machine YLP-APC-800

★ Main Technical Parameters

4. Application of High Speed and Precison Full Automatic Poker Card Punching Machine YLP-APC-800

The machine Full Automatic Poker Card Punching Machine is also named as Full Automatic Poker Playing Card Puncher, Full Auto Poker Playing Card Die Cutter or Full Auto Poker Playing Card Die Cutting machine.
