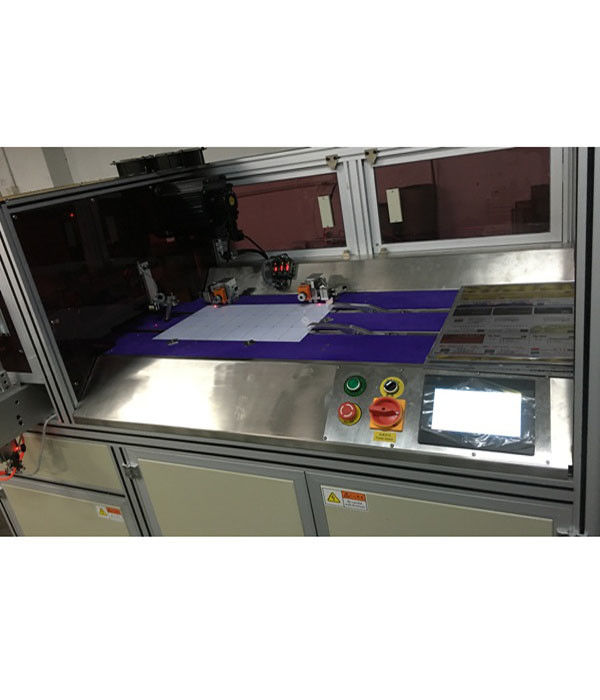

Sequential Number Card Puncher YLP-SN For CR 80 PVC Card punching

                       Sequential Number Card Puncher For CR 80 PVC Card punching YLP-SN

Sequential Number Card Puncher/Card Punching Machine/Card Die Cutter/Card Die Cutting Machine YLP-SN

(Sequential number card puncher, plastic card puncher, card die cutter, card punching machine, card machine, card production machine)

1. Introduction  of Sequential Number Card Puncher YLP-SN For CR 80 PVC Card punching

Sequential Number Card Puncher YLP-SN is specially designed for cutting the printed big sheets (such as 3*8, 4*8 or 5*5 layout) into the standard CR80 cards in a sequential and precise way.

2. Features of Sequential Number Card Puncher YLP-SN For CR 80 PVC Card punching

1. High sensitivity optical fiber sensor is used to support the imported servo feeding system to ensure higher punch precision. The punching space position is adjustable by touch screen.

2. The durable servo motor system is applied to work as the punching power, which has lower noise, failure ratio and more reliable operation.

3. The machine is controlled with PLC system. It can punch automatically after the big sheet is manually loaded.]

Sequential Number Plastic Card Puncher is also known or named as Sequential Number Card Punching Machine, Card Die Cutter or Card Die Cutting Machine.

3. Technical Parameter of Sequential Number Card Puncher YLP-SN For CR 80 PVC Card punching

Power Supply: AC 380V/50 HZ

Material: Various plastic sheets including PVC, ABS, PETG, etc.

Total Power: 3.5KW

Material Size: 3X8, 4X8 or 5X8

Air Source: 6 kg/c㎡(Dry)

Speed: 9000~12000 pcs /hr

Air Consumption: 70L/min

Control Method: PLC programming+ servo system

Weight: around 800Kg

Operator: 1 person

Precision: ±0.10mm

Dimension: L1700×W830×H1520mm

4. Application of Sequential Number Card Puncher YLP-SN For CR 80 PVC Card punching

The machine applies the powerful servo motor system as the punching power to ensure more reliable and easy punching. Professional card collecting structure is used to collect serial number cards or standard cards into one card magazine.
